Best Quality Epoxy Coal tar pitch anti-corrosive Coating Oem-YMS Paint Factory
PRODUCT DESCRIPTION
This two-component product which is solvent free is mainly prepared by high quality of
epoxy resin and coal tar. The main advantages of this product are strong resistance to
water, impact and chemical. Also, it has strong resistance in acids,alkalis,solvents and
organics and etc. that can be used as anti-corrosive coating.
Typical Uses:

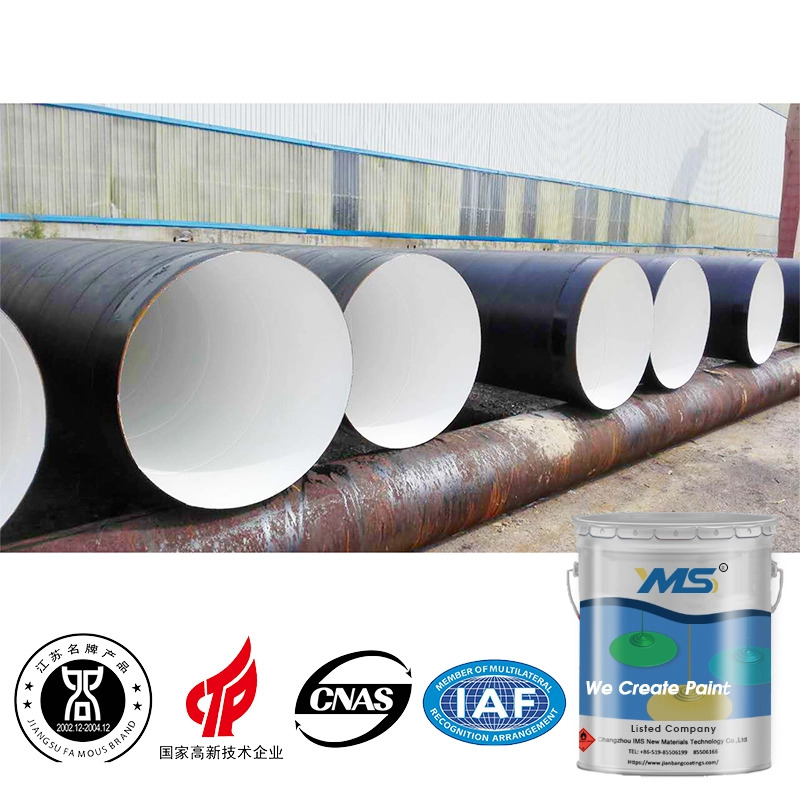

This product is designed for a wide range of underwater steel structures, which is frequently or permanent in the soaking condition. It is also used to protect material on substrate like buried concrete structure in workshops, factories, warehouse, garages etc. Crude oil tank, inner wall of tank, and sewage treatment plant are applicable as well.
PRODUCT SELLING POINT
● Nanotechnology, compact structure.
● Salt spray corrosion resistance ≥3000h,Resistance to aging≥5000h.
● 98% concentrated sulfuric acid for 1200h.
● Resistance to 30% hydrochloric acid for 1200h.
●Factory direct sale.
PRODUCT ADVANTAGES
PRODUCT APPLICATION GUIDE
| Mixing | Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. |
| Thinner | Epoxy Paint Thinner |
| Mixing ratio | Part A: Part B= 1:1(by weight) |
Airless spray | Nozzle tip: 0.021~0.025inches Spray pressure: 15~18Mpa Thinner ratio:0~15% (by weight of paint) |
Brush, Roller | Recommended Must achieve required thickness. |
MORE SPECIFIC COLORS PLEASE CONSULT US
DRYING SCHEDULE
| Substrate Temperature | 10 ℃ | 20 ℃ | 30 ℃ |
To touch(150um) | 10h | 8h | 7h |
To handle(150um) | 48h | 24h | 7h |
| Min. recoating time | 18h | 10h | 7h |
| Max. recoating time | 12d | 9d | 7d |
| Pot life | 1h | 0.8h | 0.5h |
* Make sure no chalking and other contaminations before recoating.
* Above data for reference only, actual drying time and recoating time is dependent on temperature, dry film thickness, ventilation conditions.
PRODUCT SPECIFICATIONS
Color | Black |
Gloss | Semi-glossy |
Density | ~1.42Kg/L |
| Hardener | Epoxy curing paint |
| Solid Volume | (99±1)% |
Standard Film thickness | 150µm dry film thickness (about 230µm wet film thickness) |
Theoretical spreading rate | 3.58m²/Kg (200um dry film thickness) |
Full cure | (23℃±2 )7d |
| Flash point | 27℃ |
| Heat resistance | 120℃ |
TEST REPORT
Certificate
CUSTOMER EVALUATION
SHOW CASE
- 01
Dong Ying Olympics Sports Center
Products: Epoxy Sealing Agent + Epoxy Slurry Intermediate Layer+ Epoxy Self-leveling Floor Finish
———————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
- 02
PT.Conch North Sulawesi Cement
Products: Epoxy Sealing Agent + Epoxy Slurry Intermediate Layer+ Epoxy Self-leveling Floor Finish
———————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
03
PT Sgmw Motors Indonesia-lingyun Workshop
Product: Self-leveling Epoxy Floor Paint
