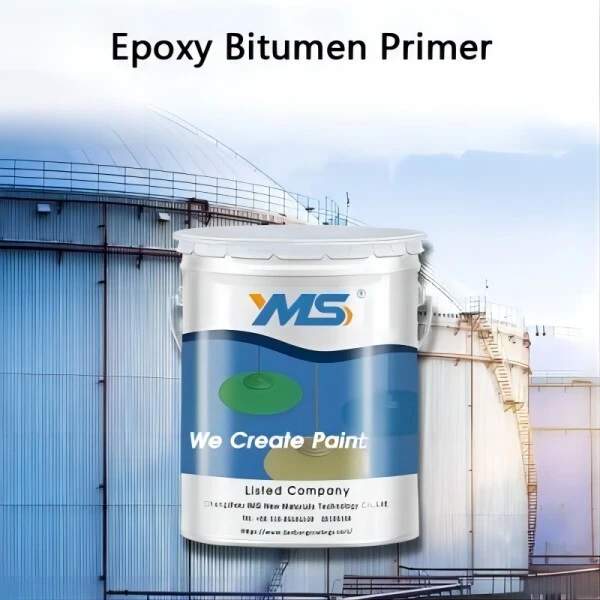

HL52-5 Epoxy Bitumen Primer High hardness great hide property
PRODUCT DESCRIPTION
Typical Uses:
PRODUCT SELLING POINT
● Nanotechnology, compact structure.
● Salt spray corrosion resistance ≥3000h,Resistance to aging≥5000h.
● 98% concentrated sulfuric acid for 1200h.
● Resistance to 30% hydrochloric acid for 1200h.
●Factory direct sale.
PRODUCT ADVANTAGES
PRODUCT APPLICATION GUIDE
| Mixing | Mix part A and part B as 25:12.5 by weight. Slowly add part B into part A and ensure mixed completely |
| Thinner | X-7 Epoxy paint thinner ≤ 10 % w./w |
| Cleaner | X-7 Epoxy paint thinner |
Application methods | Airless spray (recommended)：Nozzle tip: 0.017-0.025 inch, 3000 psi. Brush: recommended for small areas only. Roller: recommended for small areas only |
Cautions: | Apply in good weather. The substrate temperature shall be in the range of 0- 40 oC, and at least 3 oC over dew point to avoid condensation. Also, ensure apply at humidity below 85%. |
MORE SPECIFIC COLORS PLEASE CONSULT US
DRYING SCHEDULE
| Substrate Temperature | 5℃ | 23 ℃ | 40 ℃ |
To touch/h | - | ≤4 | - |
To handle/h | - | ≤24 | - |
| To cure/h | - | 24 | - |
* Data tested under controlled temperature and relative humidity below 85%
PRODUCT SPECIFICATIONS
Color | Customized |
Gloss | High gloss |
Density | ~1.25Kg/L(after mixing) |
| Hardness | Polyurethane paint thinner |
| Solid Volume | (50±2 )% |
Standard Film thickness | 60um dry film thickness (about 120um wet film thickness) |
Theoretical spreading rate | 6.67m²/Kg (60um dry film thickness) |
Full cure | (23℃±2 )7d |
| Flash point | 33℃ |
PRODUCT APPLICATION
Substrate temperature shall be at 3 ℃ higher than the dew point, relative humidity less than 85%. Measurement of temperature and humidity should be close to substrate.
TEST REPORT
Certificate
CUSTOMER EVALUATION
SHOW CASE
- 01
Dong Ying Olympics Sports Center
Products: Epoxy Sealing Agent + Epoxy Slurry Intermediate Layer+ Epoxy Self-leveling Floor Finish
———————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
- 02
PT.Conch North Sulawesi Cement
Products: Epoxy Sealing Agent + Epoxy Slurry Intermediate Layer+ Epoxy Self-leveling Floor Finish
———————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
03
PT Sgmw Motors Indonesia-lingyun Workshop
Product: Self-leveling Epoxy Floor Paint
